Peda-Gard FC Recreational Deck System provides outstanding adhesion, crack bridging, and abrasion resistance. This system is ideal where fast turnaround is required. The Acrylithane HS2 topcoat is available in a wide range of colors, and can be matched to existing surface colors or schemes.
Peda-Gard FC Recreational Deck
Decorative, traffic-bearing waterproofing system for elevated tennis courts and pedestrian recreational decks
System Overview
Our Peda-Gard FC Recreational Deck system is specially designed for use on tennis courts and other exterior recreation areas. It combines the excellent waterproofing capability of our Peda-Gard FC system with an Acrylithane HS2 topcoat, which can be tinted to match virtually any existing color scheme and give your deck vibrant, lasting color. The Acrylithane HS2 topcoat also provides excellent chemical resistance, allowing easy cleaning of spills before they become stains.
Use Area:
Pedestrian recreational areas
Type:
Urethane, with an acrylic urethane topcoat
Features:
- High elongation base coat
- Wear course with aggregate
- Tough, durable top coat
- Wide range of colors available
Benefits:
- Provides excellent crack bridging properties
- Provides excellent abrasion resistance and durability
- Industry recognized to provide the best in performance and durability
- Topcoat colors can be matched
Selected Physical Properties
| Product | Description | Test Method | Results |
|---|---|---|---|
| Acrylithane HS2 topcoat | Q-UVA 340 (4,000 hrs) | ASTM D4587 | >90% gloss retention, (60°) color change, DE <0.5 |
| Acrylithane HS2 topcoat | Impact Resistance | ASTM D2794 | 160 F and 160 R |
| Acrylithane HS2 topcoat | 24-Hour Chemical Exposure | ASTM D1308 | No Effect: DI Water, 10%; H2SO4, 10%; NaOH, 25%; H3PO4, Xylene & Mineral Spirits |

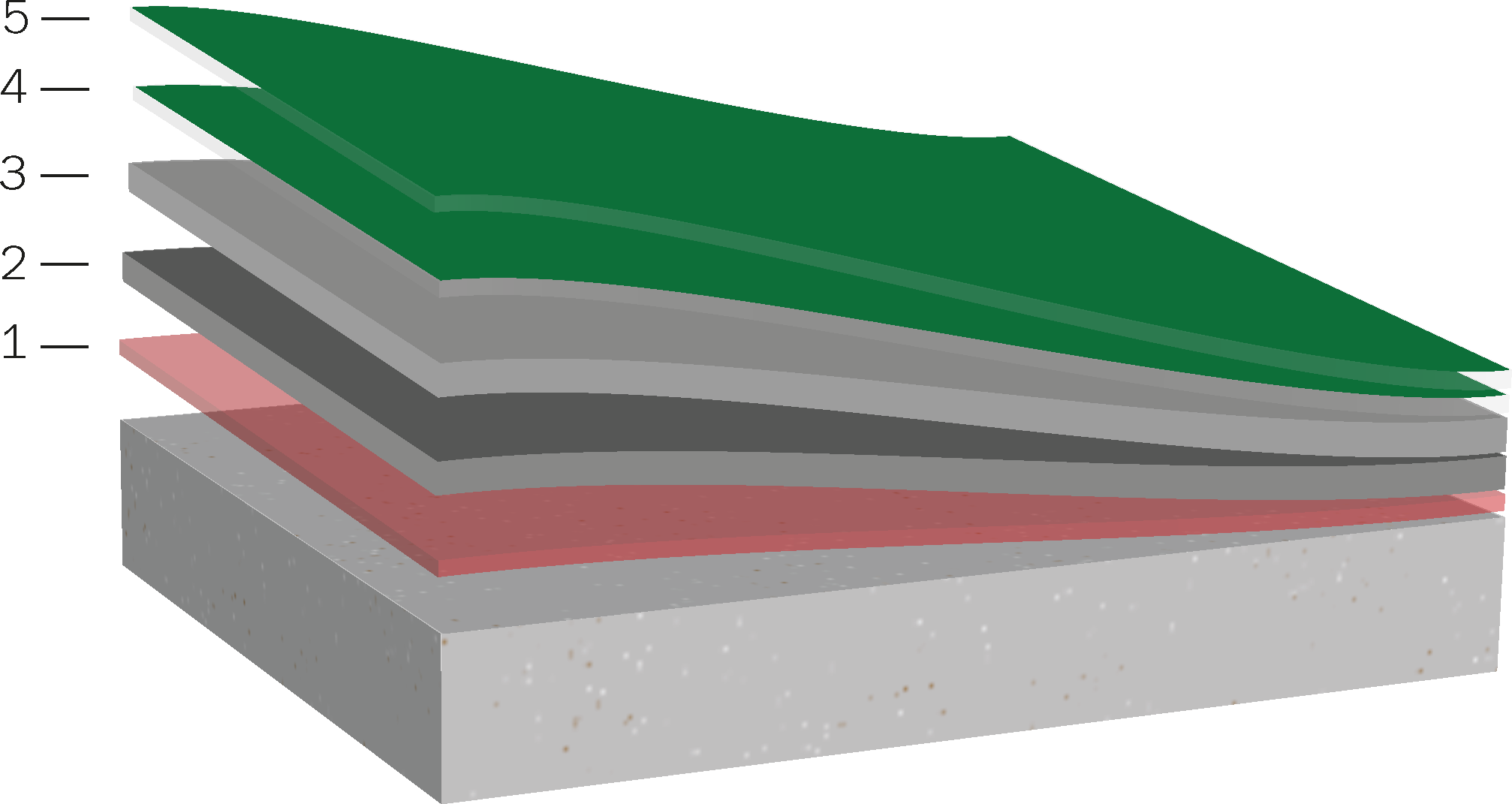

Peda-Gard FC Recreational Deck System Build
| Coat | Product | Coverage Rate | Mils WFT/DFT |
|---|---|---|---|
| 5 - 2nd Topcoat | Acrylithane HS2 | 200 sf/gal | 8/5 |
| 4 - 1st Topcoat | Acrylithane HS2 | 150 sf/gal | 9/6 |
| 3 - Wear | FC7510/FC7961 + 20/40 mesh silica |
200 sf/gal To refusal |
8/8 |
| 2 - Base | FC7500/FC7960 | 53 sf/gal | 30/30 |
| 1 - Primer | 7780/7781 7797/7798 |
300 sf/gal 300-500 sf/gal |
NA |
Technical Documents
How long does Peda-Gard FC need to cure before opening to pedestrian traffic?
Typically the coating needs to cure 24 hours before opening to pedestrian traffic. In cooler temperatures this time may be 36 hours.
What type concrete curing compounds can be used with Peda-Gard FC?
It is best to water cure concrete or use a sodium silicate curing compound. The use of acrylic or other “film forming” compounds will create bond issues and must be removed.
What is the minimum temperature at which Peda-Gard FC can be applied?
The coating should be applied at temperatures that are 40°F/4°C and rising during application.
What is the maximum concrete temperature that Peda-Gard FC can be applied?
The coating should not be applied to deck surfaces that are =/> 100°F/38°C.
You can trust Peda-Gard Recreational Deck in your next project
High-performance protection tested under the harshest environments. Peda-Gard Recreational Deck was developed to endure intense pedestrian traffic while providing a seamless, durable protection against cracks and abrasion.
