NeoQuartz flooring systems are both attractive and functional, making them a popular option for a variety of industrial, commercial, and institutional settings.
NeoQuartz
Decorative systems with 100% solids epoxy or polyaspartic and color quartz aggregate
System Overview
Innovacoatings NeoQuartz systems can be tailored to the level of surface texture specific for any need. Decorative quartz systems are a great option for wet areas, such as showers and pool decks, or locations in need of more traction while providing durability. Blended color or solid color quartz granules distributed throughout the coating create a variety of visually pleasing options to fit almost any setting, and require little maintenance.
Four systems are available:
- NeoQuartz Broadcast, an epoxy system with indoor or outdoor seal coats.
- NeoQuartz HD, a heavy-duty system with epoxy mortar.
- NeoQuartz Trowel, with epoxy-quartz mortar and indoor or outdoor seal coats.
- NeoQuartz Broadcast RTS, an all-polyaspartic system for fast return-to-service.
Use Area:
Pedestrian Walkways, Automotive, Retail, Stadiums, Restaurants, Manufacturing
Type:
Epoxy/Polyaspartic
Features:
- Enhances appearance
- Economical
- Low VOC
- Easy to clean
- Slip and skid resistant
Benefits:
- Customized color blends
- Seamless
- Anti-microbial
Selected Physical Properties
| Product | Description | Test Method | Results |
|---|---|---|---|
| 70734/70735 epoxy | Compressive Strength | ASTM D695 | 11,000 psi |
| 70817/70818 CRU | Taber Abrasion | ASTM D4060 | 23 mg/1,000 CS-17 |
| 70817/70818 CRU | Anti-Microbial | JIS Z 2801-2010 | Pass |
| 70869/70819 Polyaspartic | Taber Abrasion | ASTM | 55 mg/1,000 CS-17 |
| 70869/70819 Polyaspartic | Anti-Microbial | JIS Z 2801-2010 | Pass |
NeoQuartz System Builds

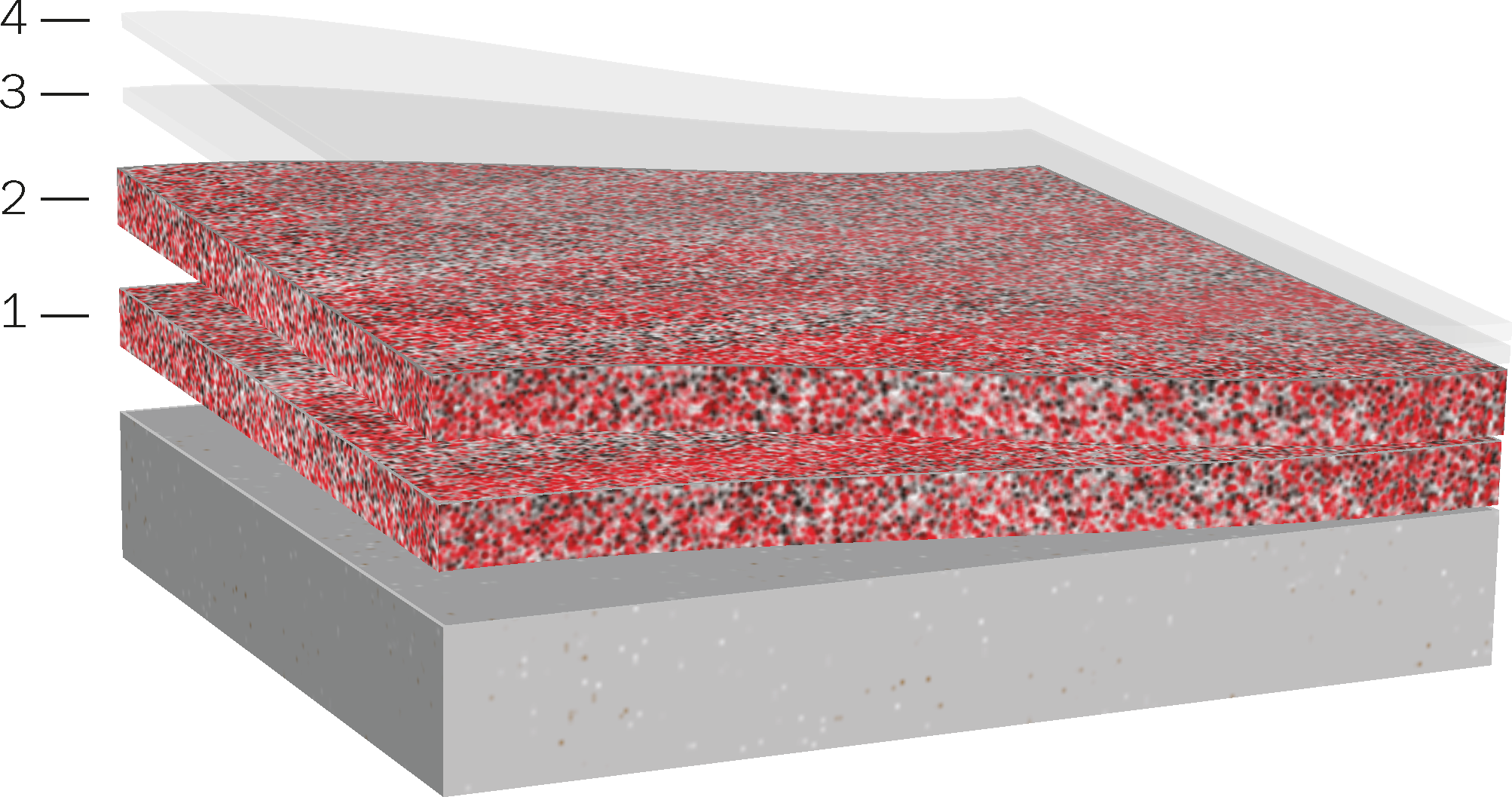

| Coat | Product | Coverage Rate | Mils WFT/DFT |
|---|---|---|---|
| 4 - 2nd Seal* | 70817/70818 CRU or 70734/70735 epoxy |
200 sf/gal | 8/8 |
| 3 - 1st Seal* | 70817/70818 CRU or 70734/70735 epoxy |
160 sf/gal | 10/10 |
| 2 - 2nd Base | 70714/70715 + Color Quartz |
80 sf/gal 50 lbs/100 sf |
20/20 (1/16" w/aggregate) |
| 1 - 1st Base | 70714/70715 + Color Quartz |
80 sf/gal 50 lbs/100 sf |
20/20 (1/16" w/aggregate) |

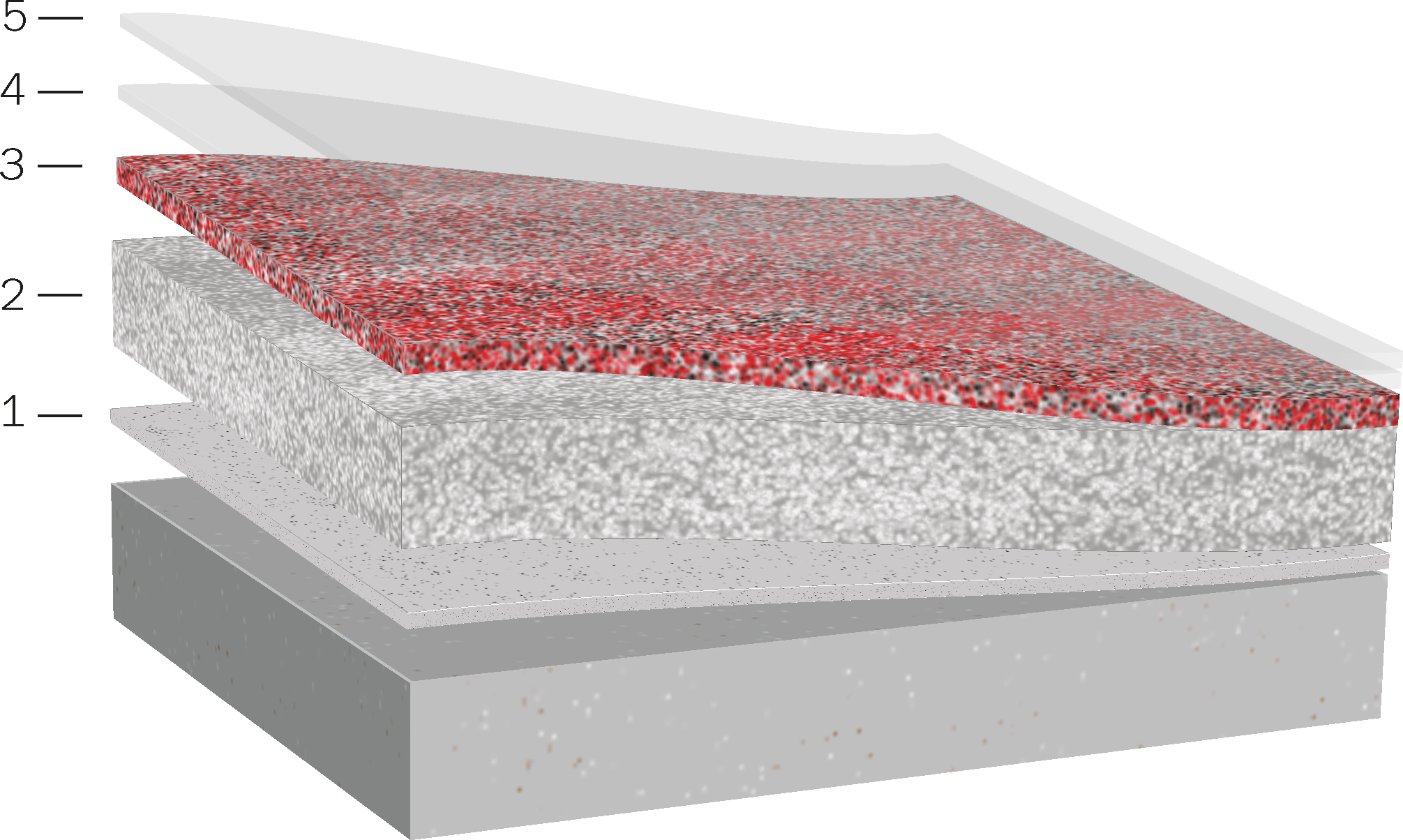

| Coat | Product | Coverage Rate | Mils WFT/DFT |
|---|---|---|---|
| 5 - 2nd Seal | 70734/70735 or 70869/70819 |
200 sf/gal | 8/8 |
| 4 - 1st Seal | 70734/70735 or 70869/70819 |
200 sf/gal | 8/8 |
| 3 - Broadcast | 70714/70715 + Color quartz aggregate |
80 sf/gal 50 lbs/100 sf |
20/20 |
| 2 - Mortar | 70714/70715 mixed w/CG Mortar 67CUS9980 |
Specified Thickness | |
| 1 - Primer |
70714/70715 + CG Mortar 67CUS99980 |
200 sf/gal 20 lbs/100 sf |
8/8 |

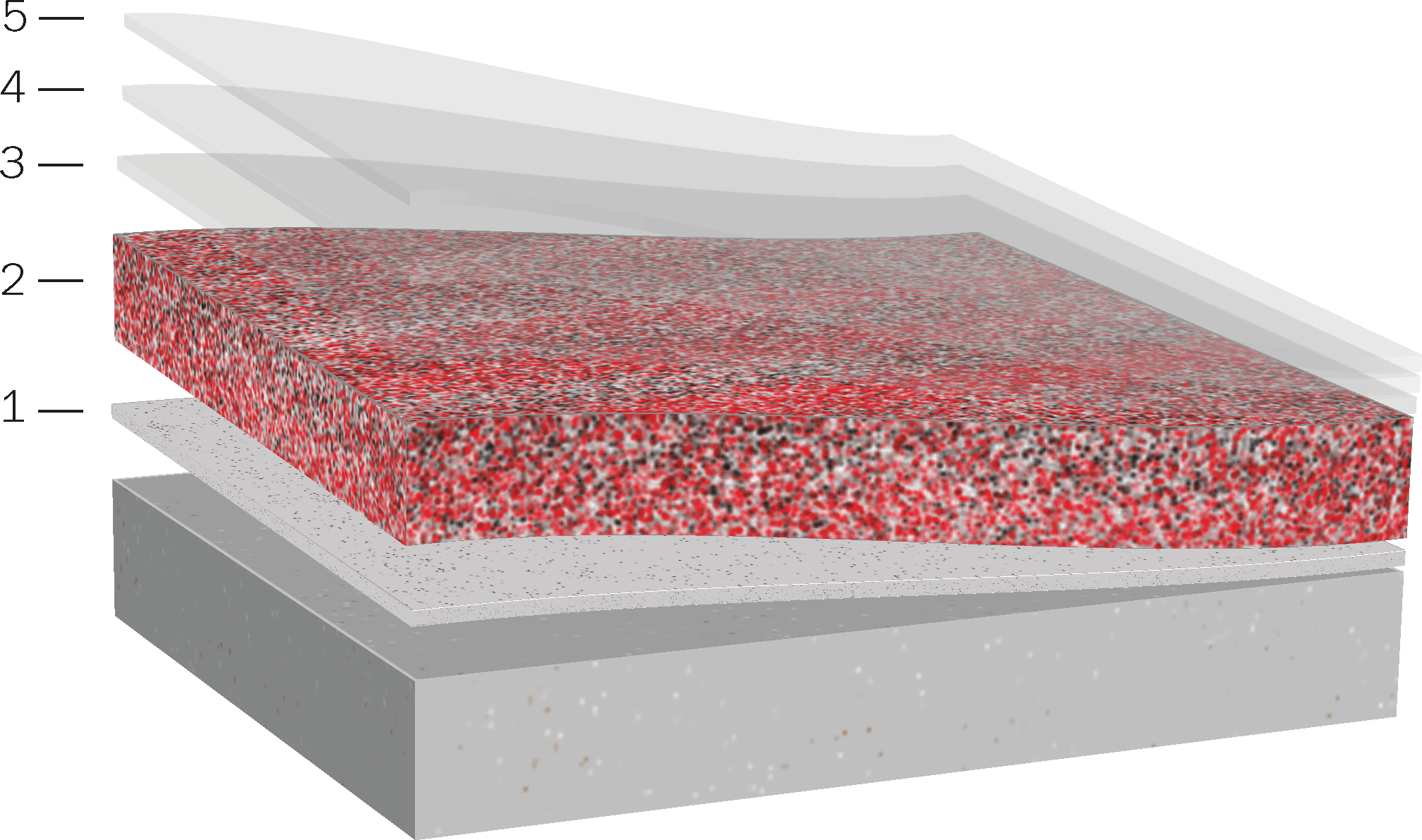

| Coat | Product | Coverage Rate | Mils WFT/DFT |
|---|---|---|---|
| 5 - 2nd Seal* | 70734/70735 epoxy or 70817/70818 CRU |
200 sf/gal | 8/8 |
| 4 - 1st Seal* | 70734/70735 epoxy or 70817/70818 CRU |
200 sf/gal | 8/8 |
| 3 - Grout | 70734/70735 | 200 sf/gal | 8/8 |
| 2 - Mortar | 70714/70715 mixed w/Color quartz |
Specified Thickness | |
| 1 - Primer | 70714/70715 + 86364 sand aggregate |
200 sf/gal 20 lbs/100 sf |
8/8 |
| Coat | Product | Coverage Rate | Mils WFT/DFT |
|---|---|---|---|
| 4 - 2nd Seal | 70869/70819 Polyaspartic | 200 sf/gal | 8/8 |
| 3 - 1st Seal | 70869/70819 Polyaspartic | 160 sf/gal | 10/10 |
| 2 - 2nd Base | 70869/70819 Polyaspartic + Color Quartz |
80 sf/gal 50 lbs/100 sf |
20/20 (1/16" w/aggregate) |
| 1 - 1st Base | 70869/70819 Polyaspartic + Color Quartz |
80 sf/gal 50 lbs/100 sf |
20/20 (1/16" w/aggregate) |
Technical Documents
What areas of my facility are appropriate for this system?
Decorative quartz systems are appropriate for bathrooms, locker rooms, common areas, showroom floors, etc.
What are the limitations of the system?
May be used in conjunction with Moisture Mitigating Primer and not recommended for installation above 80% relative humidity.
How can this system be used for recoating existing flooring systems?
May be applied over sound, high performance coating systems by sanding/abrading and patching any holes/cracks.
How long will the system last with daily use?
3-5 years with normal abuse and wear. System is sustainable by sand/rebroadcast and topcoating.
What are the general recommendations for applying this system?
Surface prep of CSP3, squeegee/backroll, apply within system guidelines for each step.
You can trust NeoQuartz in your next project
High-performance protection tested under the harshest environments. NeoQuartz systems are a great option for wet areas, such as showers and pool decks, or locations in need of more traction while providing durability.
