Auto-Gard Aliphatic utilizes an aliphatic topcoat for excellent UV resistance. It also provides outstanding adhesion, crack bridging, and abrasion resistance.
Auto-Gard Aliphatic
Single-component, solvent-based urethane system with an aliphatic topcoat
System Overview
Auto-Gard Aliphatic adds an aliphatic topcoat to our proven Auto-Gard traffic coating system for excellent UV resistance. It is ideal for concrete parking decks and pedestrian high-traffic applications, especially stadiums. Auto-Gard Aliphatic provides a seamless, durable, skid-resistant membrane, preventing ingress of moisture and chloride intrusion that lead to premature deterioration.
Maintain the structural integrity and appearance of your investments with Auto-Gard Aliphatic, and prolong the lifecycle of your structure while reducing cost over time with proper maintenance.
Use Area:
Vehicular Traffic
Type:
Urethane
Features:
- Single component
- Aliphatic top coat
- High elongation
- High tensile properties
- Elastomeric properties throughout system
- Wear course with lock coat
Benefits:
- No additional mixing of components
- Excellent color retention
- Excellent crack bridging
- Superior toughness
- Reduced mixing time
- Aids in crack bridging
- Industry recognized to provide the best in performance and durability
- Provides the ultimate in UV resistance
Selected Physical Properties
| Product | Description | Test Method | Results |
|---|---|---|---|
| Auto-Gard Aliphatic system | Dynamic Coefficient of Friction | ANSI A137.1 | 0.79, dry surface |
| Auto-Gard Aliphatic system | Dynamic Coefficient of Friction | ANSI A137.1 | 0.71, wet surface |
| Auto-Gard Aliphatic system | Fire Resistance | ASTM E108 | Pass |
| Auto-Gard Aliphatic system | Standard Specifications | ASTM C957 | Exceeds requirements |
| 7470 topcoat | Taber Abrasion | ASTM D4060 | 10 mg/1,000 CS-17 |

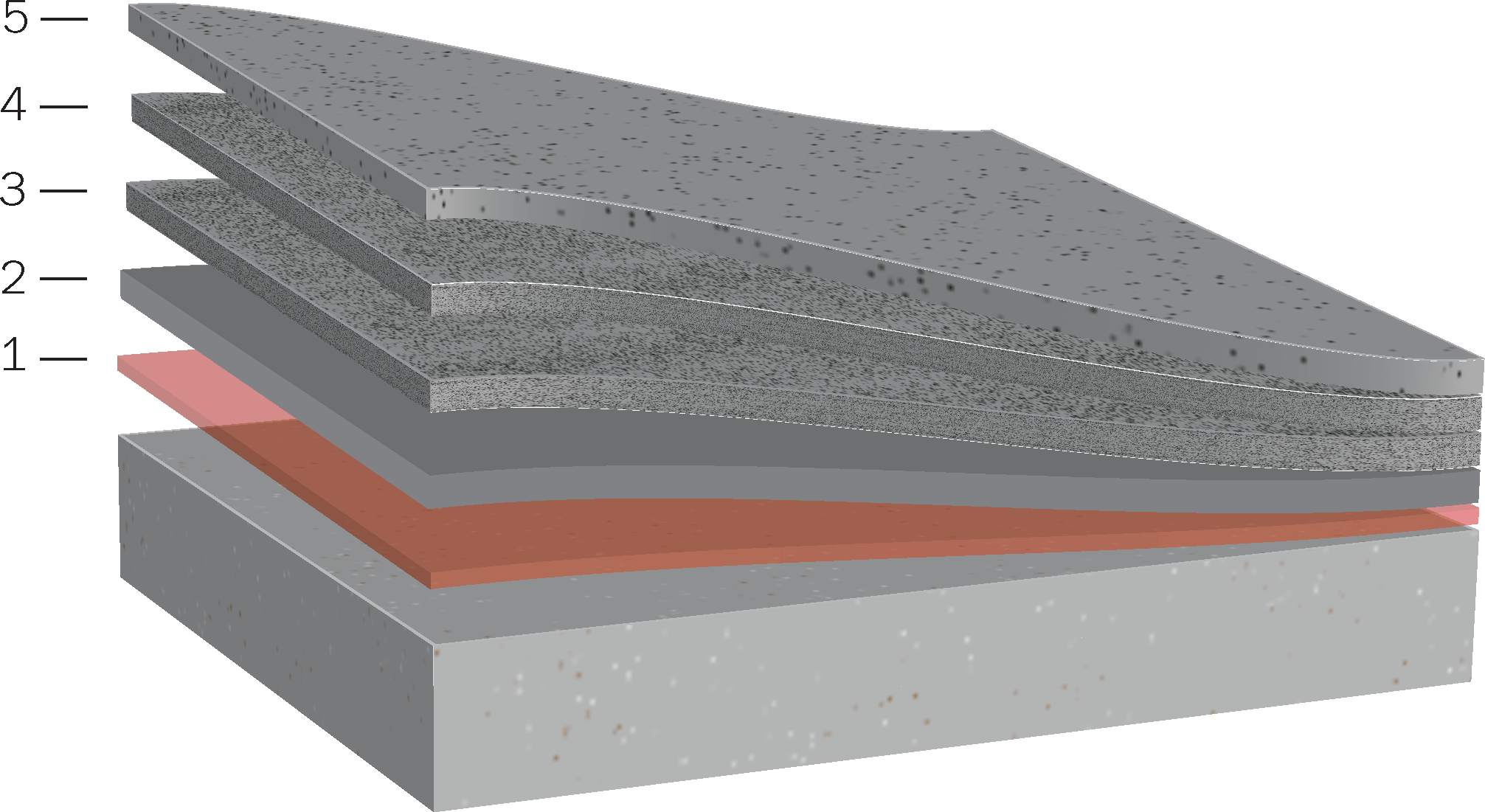

Auto-Gard Aliphatic System Build
| Coat | Product | Coverage Rate | Mils WFT/DFT |
|---|---|---|---|
| 5 - Topcoat | 7470 series | 100 sf/gal | 16/12 |
| 4 - HD Wear | 7430 series + 7992 aggregate |
100 sf/gal 10 lb/100 sf |
16/12 |
| 3 - Wear | 7430 series + 7992 aggregate |
150 sf/gal 15 lb/100 sf |
10/8 |
| 2 - Base | 70410 | 60 sf/gal | 26/20 |
| 1 - Primer | 7760/7761 7780/7781 7797/7798 |
300 sf/gal |
NA |
| Coat | Product | Coverage Rate | Mils WFT/DFT |
|---|---|---|---|
| 4 - Topcoat | 7470 series + 7992 aggregate |
60 sf/gal 15 lb/100 sf |
26/20 |
| 3 - HD Wear | 7430 series + 7992 aggregate |
100 sf/gal 10 lb/100 sf |
16/12 |
| 2 - Base | 70410 | 60 sf/gal | 26/20 |
| 1 - Primer | 7760/7761 7780/7781 7797/7798 |
300 sf/gal |
NA |
Technical Information
Downloads
Documentation
How long does Auto-Gard Aliphatic need to cure before opening to vehicular traffic?
Typically the coating needs to cure 72 hours before opening to vehicular traffic. In cooler temperatures this time may extend out as much as 24-36 hours.
What type concrete curing compounds can be used with Auto-Gard Aliphatic?
It is best to water cure concrete or use a sodium silicate curing compound. The use of acrylic or other “film forming” compounds will create bond issues and must be removed.
What is the minimum temperature at which Auto-Gard Aliphatic can be applied?
The coating should be applied at temperatures that are 40°F/4°C and rising during application.
What is the maximum concrete temperature that Auto-Gard can be applied?
The coating should not be applied to deck surfaces that are =/> 100°F/38°C.
Trust Auto-Gard Aliphatic for Your Next Project
Proven Performance Under the Toughest Conditions
Auto-Gard is engineered to withstand heavy vehicular traffic while delivering a smooth, durable, and slip-resistant membrane that prevents moisture penetration and chloride intrusion.
