Light- to heavy-duty, in thicknesses from 16-56 mils. Chemical-resistant urethane topcoat.
SkyGard
Epoxy/polyurethane aviation hangar floor systems
System Overview
Innovacoatings SkyGard systems are designed to be high-performance and hard-wearing, with excellent chemical, stain, and abrasion resistance. These seamless, non-porous systems are aesthetically pleasing with bright, light-reflective colors offering both enhanced visibility and safety. SkyGard systems are UV stable, durable and long-lasting finishes with various non-slip textures that balance safety concerns with ease of cleaning and maintenance. Line striping, special markings, and integrating colored borders can help establish maintenance, parking zones, as well as enhance the overall image of the hangar. Available systems are shown below.
Use Area:
Aviation, Automotive, Manufacturing
Type:
Epoxy/Polyurethane
Features:
- Seamless
- Light Reflective
- Skydrol Resistant
- UV Stable
- Optional texture
Benefits:
- Improves cleanability
- Excellent abrasion resistance
- Customizable thickness
Selected Physical Properties
| Product | Description | Test Method | Results |
|---|---|---|---|
| 70714/70715 epoxy | Compressive Strength | ASTM D695 | 25,300 psi |
| 70817/70818 CRU | Shore D | ASTM D2240 | 70 |
| 70817/70818 CRU | Taber Abrasion | ASTM D4060 | 23 mg/1,000 CS-17 |
| 70817/70818 CRU | Chemical Resistance | See Chemical Resistance Chart | |

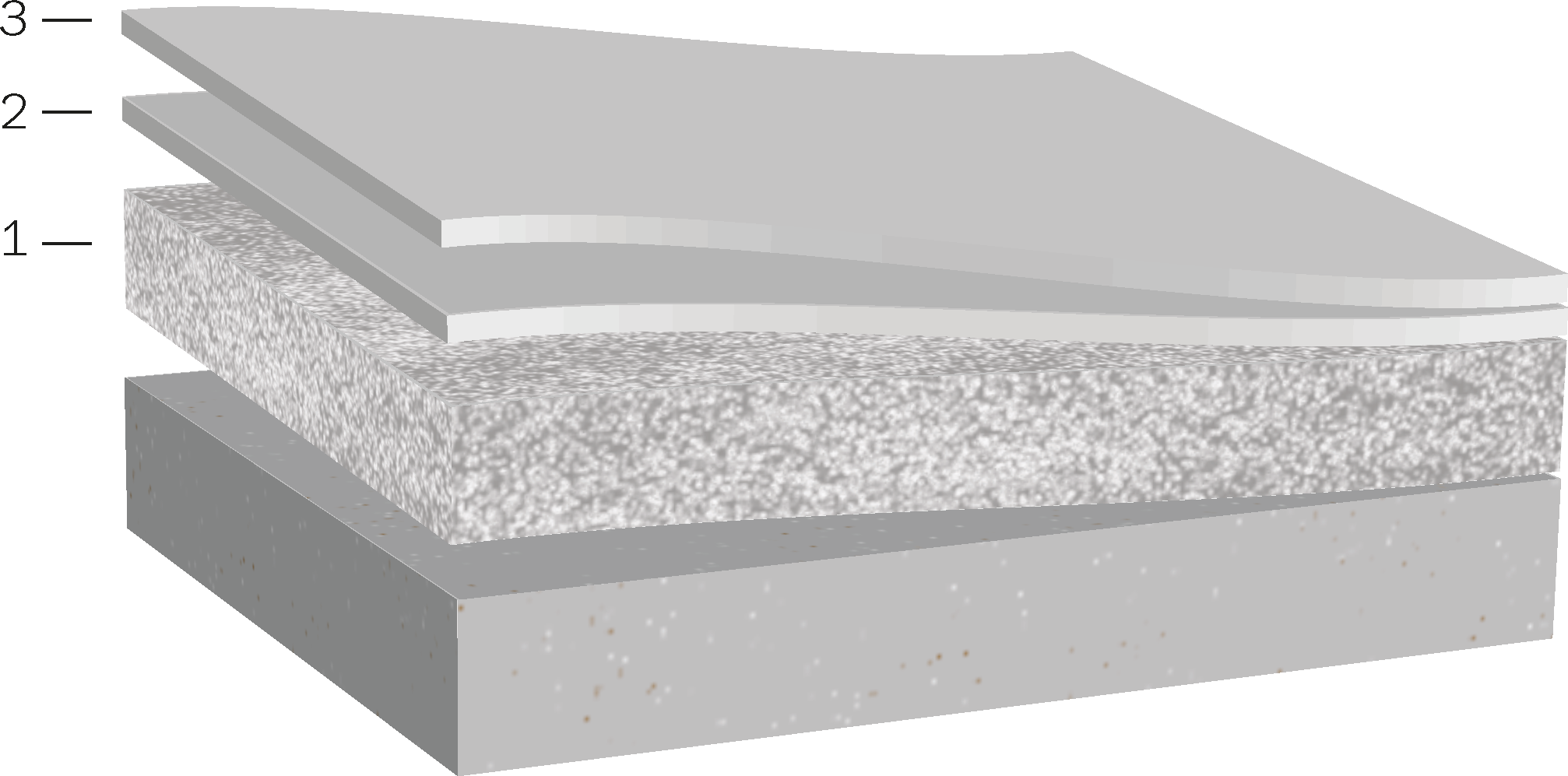

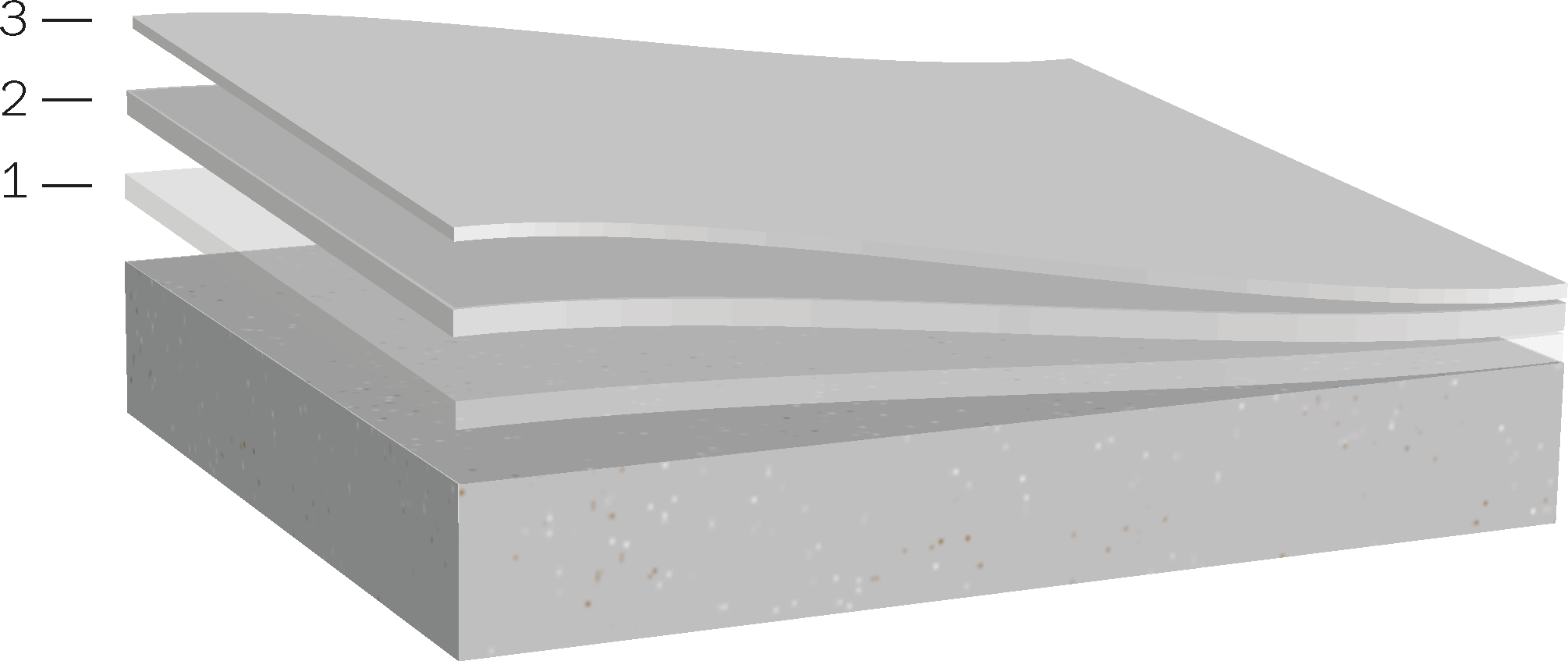

SkyGard System Builds
| Coat | Product | Coverage Rate | Mils WFT/DFT |
|---|---|---|---|
| 3 - Optional Texture | 70817/70818 + 86500 Neogrip Spheres* |
400 sf/gal | 4/4 |
| 2 - Topcoat | 70817/70818 | 200 sf/gal | 8/8 |
| 1 - Primer | 70714/70715 | 200 sf/gal | 8/8 |
| Coat | Product | Coverage Rate | Mils WFT/DFT |
|---|---|---|---|
| 4 - Optional Texture | 70817/70818 + 86500 Neogrip Spheres* |
400 sf/gal | 4/4 |
| 3 - Topcoat | 70817/70818 | 200 sf/gal | 8/8 |
| 2 - Base | 70714/70715 | 80 sf/gal | 20/20 |
| 1 - Primer | 70714/70715 | 200 sf/gal | 8/8 |
| Coat | Product | Coverage Rate | Mils WFT/DFT |
|---|---|---|---|
| 4 - Optional Texture | 70817/70818 + 86500 Neogrip Spheres* |
400 sf/gal | 4/4 |
| 3 - Topcoat | 70817/70818 | 200 sf/gal | 8/8 |
| 2 - Slurry base | 70714/70715 + 86468 Flour |
40 sf/gal | 40/40 |
| 1 - Primer | 70714/70715 | 200 sf/gal | 8/8 |
| Coat | Product | Coverage Rate | Mils WFT/DFT |
|---|---|---|---|
| 4 - 2nd Seal | 70817/70818 | 285 sf/gal | 5/5 |
| or | |||
| 4 - 2nd Seal | 70714/70715 | 200 sf/gal | 8/8 |
| 3 - 1st Seal | 70714/70715 | 200 sf/gal | 8/8 |
| 2 - Aggregate | 86364 Sand | 100 lbs/100 sf | 40/40 |
| 1 - Slurry Base | 70714/70715 + 86468 flour |
40 sf/gal | |
Technical Documents
What areas of my facility are appropriate for this system?
Aircraft hangars, supply areas, maintenance areas, tug areas, showroom floors, auto maintenance areas, bathrooms, etc.
What are the limitations of the system?
In case of high levels of MVT(Moisture Vapor Transmission), may be used with Moisture Mitigating Primer.
How can this system be used for recoating existing flooring systems?
May be applied over sound, high performance coating systems by sanding/abrading/patching and installation of intermediate and topcoats.
How long will the system last with daily use?
3-5 years with normal abuse and wear. System is sustainable by sand/reapplication of topcoats.
What are the general recommendations for applying this system?
Surface prep of CSP3, squeegee/backroll, apply within system guidelines for each step.
You can trust Neogard SkyGard in your next project
High-performance protection tested under the harshest environments. Neogard SkyGard was designed to be high-performance and hard-wearing, with excellent chemical, stain, and abrasion resistance.
