Pool-Gard C is a urethane system for water features. For exterior applications or those where color is desired, the Acrylithane topcoat can be tinted to match any color.
Pool-Gard C
Urethane waterproofing system for use in fountains and reflecting pools
System Overview
Innovacoatings Pool-Gard C is specially designed for use in decorative water features like fountains and reflecting pools. Our 7825/7821 two-component urethane provides outstanding water containment, and the optional Acrylithane HS2 or HS4 topcoat can be tinted to match any color scheme.
Please note: This system is not for use in swimming pools, cooling towers, or potable water tanks.
Use Area:
Fountains, Reflecting Pools
Type:
Urethane
Features:
- Excellent elongation
- Top coat color options
Benefits:
- Provides crack bridging/waterproofing
- Adds beauty to water feature
Selected Physical Properties
| Product | Description | Test Method | Results |
|---|---|---|---|
| 7825/7821 urethane | MVT | ASTM E96 | 0.5 English Perms at 20 mils |
| 7825/7821 urethane | Elongation | ASTM D412 | 200% |
| 7825/7821 urethane | Tensile Strength | ASTM D412 | 1,500 psi |

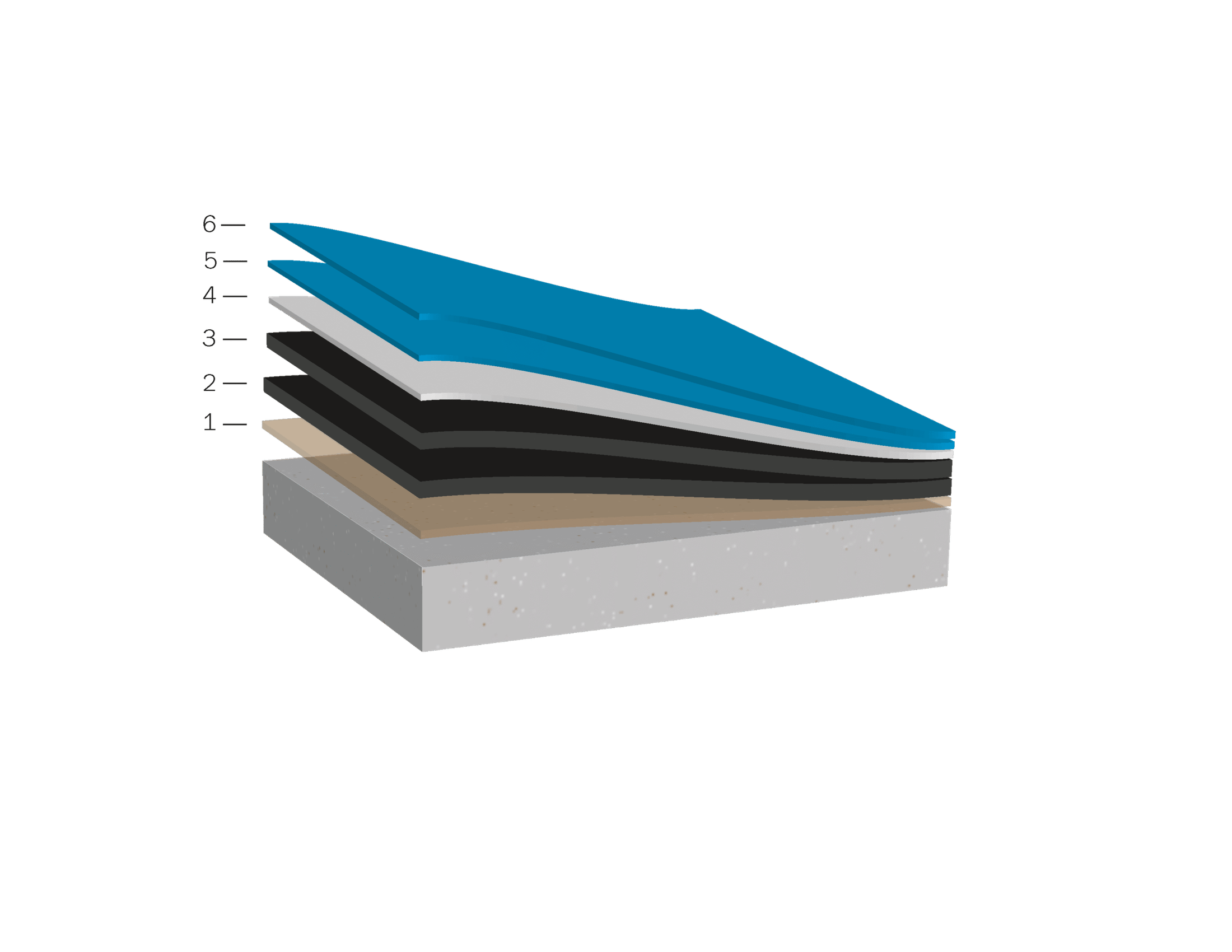

Pool-Gard C System Build
| Coat | Product | Coverage Rate | Mils WFT/DFT |
|---|---|---|---|
| 6 - 2nd Exterior Finish | Acrylithane HS2 Acrylithane HS4 |
200 sf/gal | 8/5 8/4 |
| 5 - 1st Exterior Finish | Acrylithane HS2 Acrylithane HS4 |
200 sf/gal | 8/5 8/4 |
| 4 - Exterior Primer | Ureprime HS4 | 300 sf/gal | NA |
| 3 - Topcoat | 7825/7821 | 66 sf/gal | 24/24 |
| 2 - Base | 7825/7821 | 66 sf/gal | 24/24 |
| 1 - Primer | 7740/7741 | 200 sf/gal | NA |
Technical Documents
How long does Pool-Gard C need to cure before opening to pedestrian traffic?
Typically the coating needs to cure 48 hours before opening to pedestrian traffic. In cooler temperatures this time may be 72 hours.
What type concrete curing compounds can be used with Pool-Gard C?
It is best to water cure concrete or use a sodium silicate curing compound. The use of acrylic or other “film forming” compounds will create bond issues and must be removed.
What is the minimum temperature at which Pool-Gard C can be applied?
The coating should be applied at temperatures that are 40°F/4°C and rising during application.
How soon after application can water feature be filled with water?
System must be cured for a minimum 10 days prior to being filled with water.
You can trust Pool-Gard C in your next project
High-performance protection tested under the harshest environments. Pool-Gard C can make your fountain or reflective pool great looks and reliable protection.
