Permathane Aliphatic II

Aliphatic urethane topcoat roofing system

Permathane Aliphatic II is a single-component polyurethane base coat, single-component aliphatic polyurethane topcoat system for use over spray polyurethane foam roof Coating (foam provided by others).

System Overview

Permathane Aliphatic II incorporates a 70620-CA aromatic urethane base coat with a 7490-CA aliphatic urethane topcoat. The 20-year warranty system carries a Class 4 Very Severe Hail rating. It is ideal for institutional, commercial, industrial, and high-rise/multi-family residential applications. Recommended SPF density is 2.7–3.2 pounds.

Innovacoatings -CA urethane roof coatings form a seamless membrane for superior durability, flexibility, color retention and long-term protection. They comply with South Coast AQMD VOC regulations. They are typically rolled, but can also be sprayed (contact Innovacoatings for information on spray equipment). Our 7490-CA aliphatic topcoat has high UV resistance, and is less likely to chalk than an aromatic coating. It and our 70620-CA base coat also have high tensile strength and chemical resistance, which prevents failure due to expansion and contraction of the system, and failures around critical areas like penetrations and flashing.

Use Area:

Roofing

Type:

Aliphatic Urethane

Features:

  • Seamless and fully adhered
  • Aliphatic Urethane Top Coat
  • Hail and wind resistant
  • Energy efficient
  • Sustainable

Benefits:

  • One-piece “customized” finished roof
  • Great UV Stability
  • Performs in adverse weather conditions
  • Lower energy expenses
  • Systems can be renewed, rather than replaced

Selected Physical Properties

Product Description Test Method Results
70620-CA Tensile Strength ASTM D412 1,000 psi
70620-CA Elongation ASTM D412 375%
70620-CA Water Resistance ASTM D471 < 2%, 7 days
7490-CA Tensile Strength ASTM D412 2,300 psi
7490-CA Elongation ASTM D412 230%
7490-CA Water Resistance ASTM D471 < 2%, 7 days
Permathane Aliphatic II Hail Impact Resistance FM4473 Class 4, Very Severe

Permathane Aliphatic II System Build

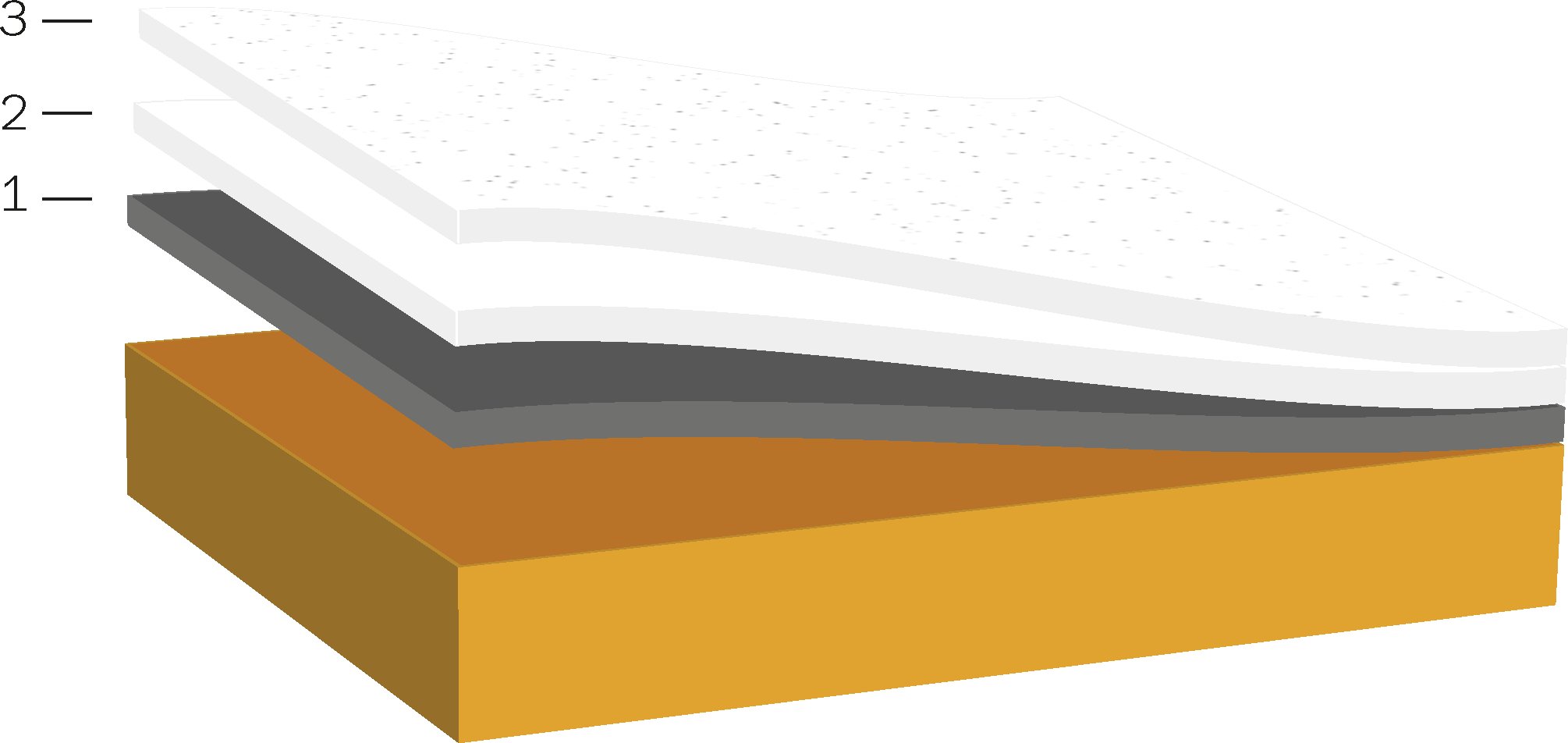

Coat Product Coverage Rate Mils WFT/DFT
3 - Optional Granule Coat 7490-CA +
#11 roofing granules
100 sf/gal
30 lbs/100 sf
16/12
2 - Topcoat 7490-CA 66 sf/gal 24/18
1 - Base 70620-CA 66 sf/gal 24/18

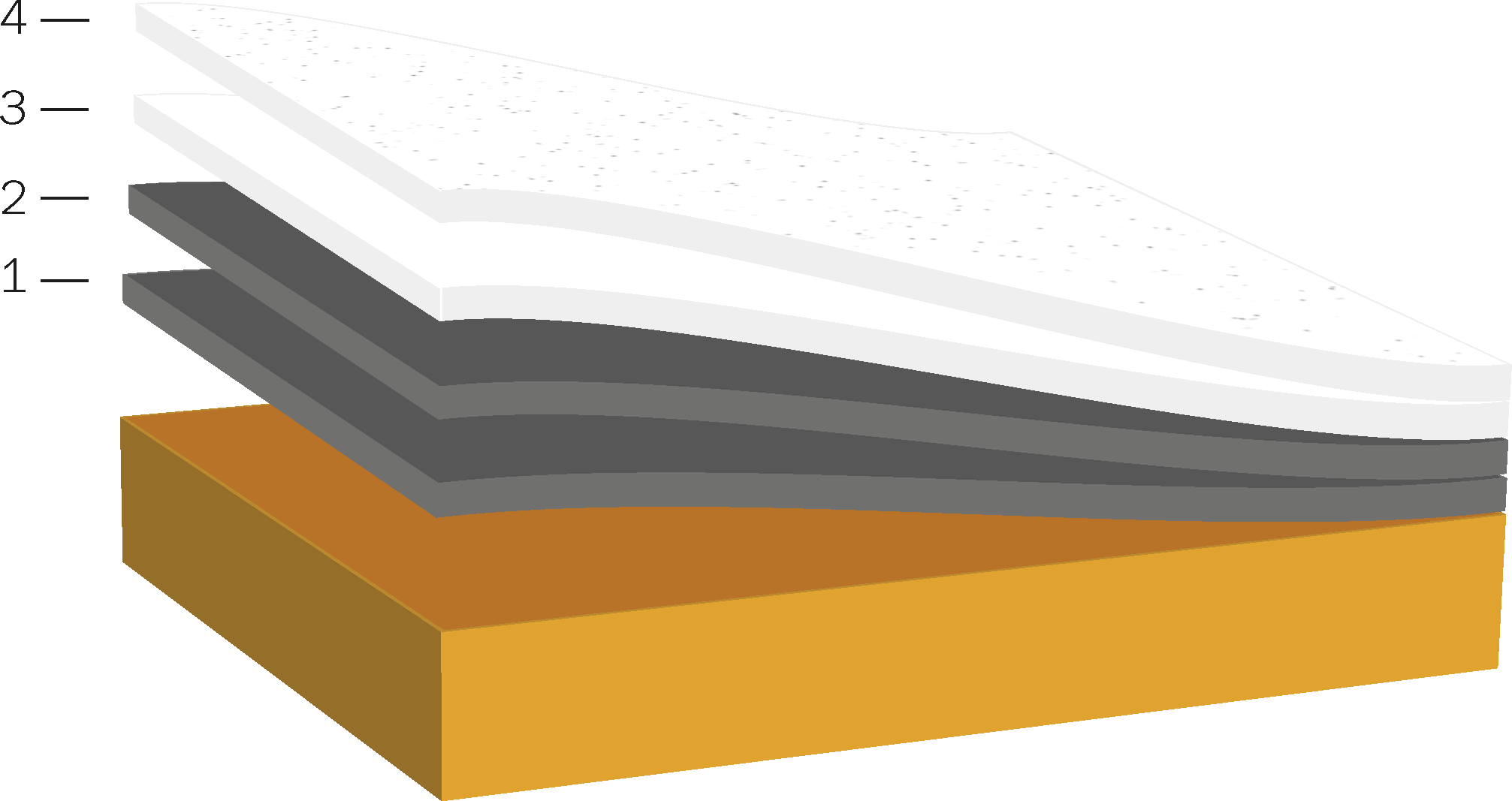

Coat Product Coverage Rate Mils WFT/DFT
4 - Optional Granule Coat 7490-CA +
#11 roofing granules
100 sf/gal
30 lbs/100 sf
16/12
3 - Topcoat 7490-CA 66 sf/gal 24/18
2 - 2nd Base 70620-CA 80 sf/gal 20/15
1 - 1st Base 70620-CA 80 sf/gal 20/15

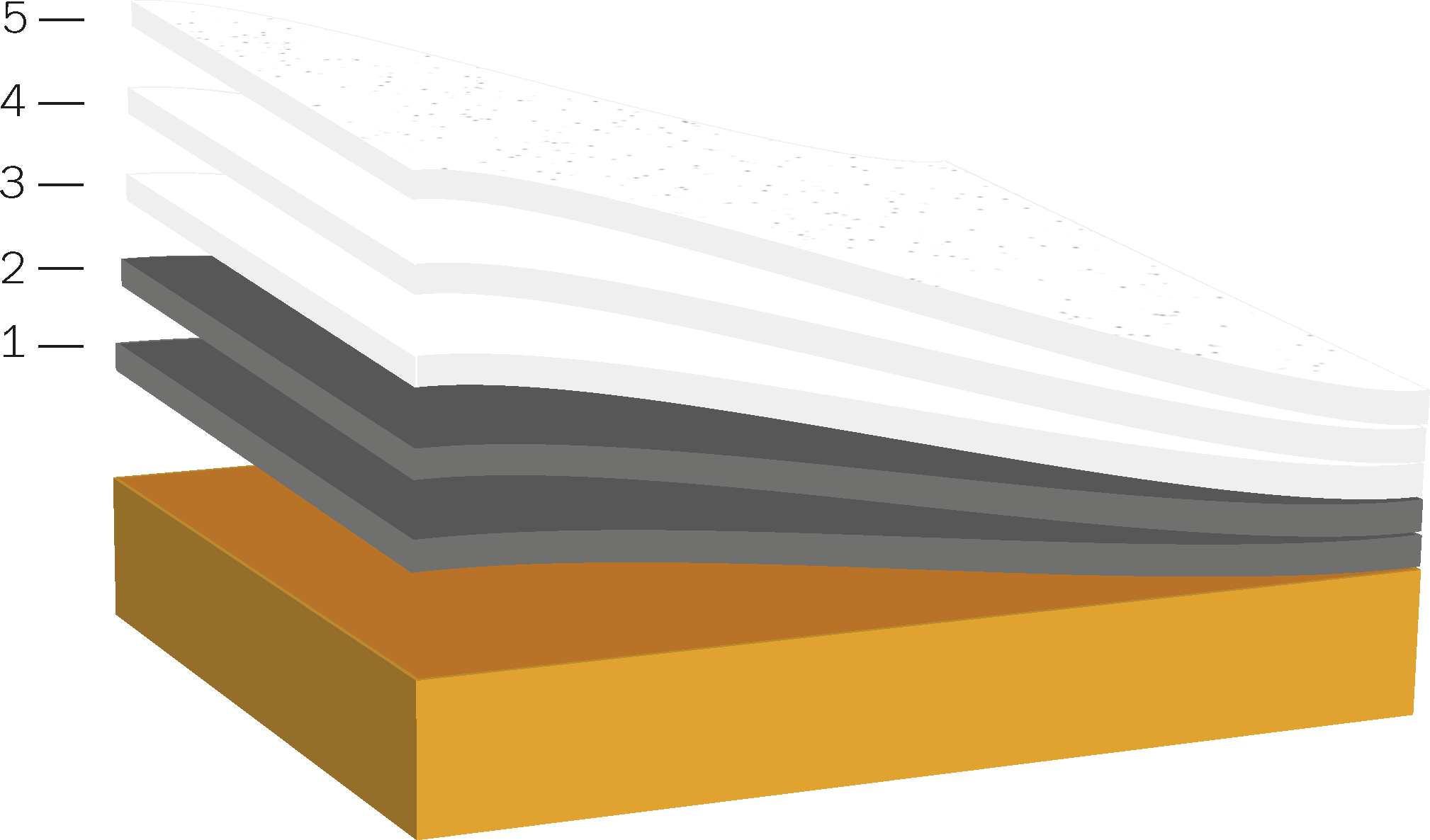

Coat Product Coverage Rate Mils WFT/DFT
5 - Optional Granule Coat 7490-CA +
#11 roofing granules
100 sf/gal
30 lbs/100 sf
16/12
4 - 2nd Topcoat 7490-CA 80 sf/gal 20/15
3 - 1st Topcoat 7490-CA 80 sf/gal 20/15
2 - 2nd Base 70620-CA 80 sf/gal 20/15
1 - 1st Base 70620-CA 80 sf/gal 20/15

Technical Documents

Can your urethane coatings withstand ponding water?

Yes the urethane products can perform under ponding water when the required dry film thickness is achieved

What are the length of warranties for your Permathane Aliphatic II system?

The Permathane Aliphatic II system offers 10, 15 and 20 year warranties.

Is a moisture analysis required prior to the installation of this system?

It is not a requirement but it is highly recommended.

Does the Permathane Aliphatic II system have a hail rating?

Yes the Permathane Aliphatic II has passed the SHR and VSR tests

Do you have to a be an approved applicator to install your coatings?

You do not have to be an approved applicator to buy or install Innovacoatings products but you must be a Certified Applicator to install and receive the roofing Labor and Material Warranty.

You can trust Permathane Aliphatic II in your next project

High-performance protection tested under the harshest environments. Permathane Aliphatic II was developed to provide high-performance roof coating systems and form a seamless membrane for superior durability, flexibility, color retention and long-term protection.
