Peda-Gard TS is a urethane system for use on surfaces that are to receive a thinset tile application. The system provides for long-term water tightness and provides for positive adhesion of thinset tile systems.
Peda-Gard TS
Single-component urethane system for applications under thinset tile
System Overview
Peda-Gard TS uses our proven 7430 single-component urethane to provide a waterproofing barrier below thin-set tile. The 7992 sand aggregate gives the system a profile that grips the thinset mortar, ensuring the tile won’t move.
Use Area:
Pedestrian
Type:
Urethane
Features:
- High elongation base coat
- Reduced application steps
- Textured top coat
Benefits:
- Provides excellent crack bridging properties
- Increased production
- Provides excellent adhesion of thin set systems
Selected Physical Properties
| Product | Description | Test Method | Results |
|---|---|---|---|
| 7430 urethane | Water Resistance | ASTM D471 | < 3% (7 days) |
| 7430 urethane | Tensile Strength | ASTM D412 | 2,500 psi |
| 7430 urethane | Elongation | ASTM D412 | 400% |
Peda-Gard TS

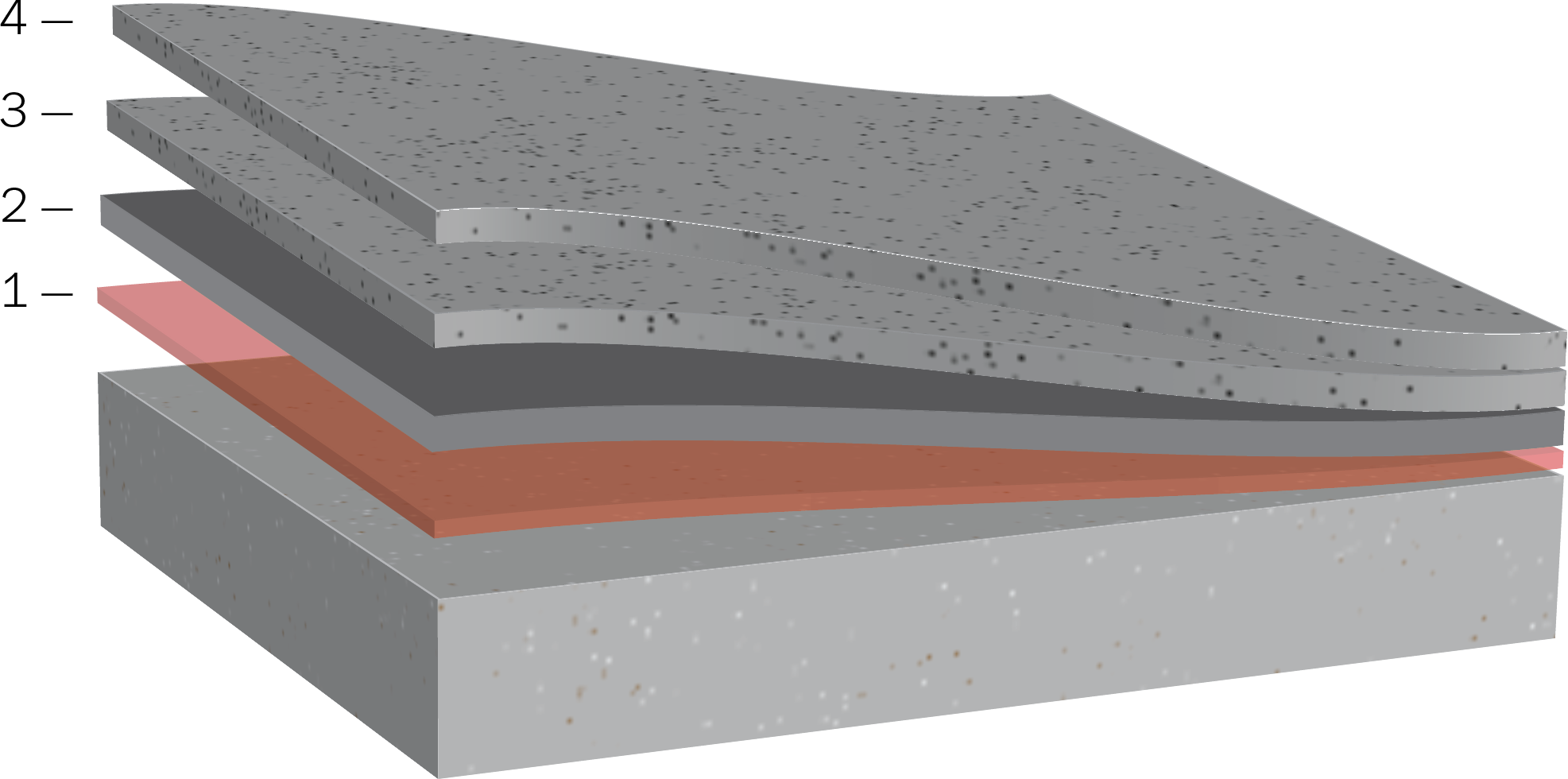

| Coat | Product | Coverage Rate | Mils WFT/DFT |
|---|---|---|---|
| 4 - Wear | 7430 series + 7992 aggregate |
200 sf/gal 10 lbs/100 sf |
8/6 |
| 3 - 2nd Base | 7430 series | 80 sf/gal | 20/15 |
| 2 - 1st Base | 7430 series | 80 sf/gal | 20/15 |
| 1 - Primer | 7780/7781 7797/7798 |
300 sf/gal 300-500 sf/gal |
NA |
Technical Documents
How long does Peda-Gard TS needs to cure before opening to pedestrian traffic?
Typically the coating needs to cure 48 hours before opening to pedestrian traffic. In cooler temperatures this time may be 72 hours.
What type concrete curing compounds can be used with Peda-Gard TS?
It is best to water cure concrete or use a sodium silicate curing compound. The use of acrylic or other “film forming” compounds will create bond issues and must be removed.
What is the minimum temperature at which Peda-Gard TS can be applied?
The coating should be applied at temperatures that are 40°F/4°C and rising during application.
What is the maximum concrete temperature that Peda-Gard TS can be applied?
The coating should not be applied to deck surfaces that are =/> 100°F/38°C.
You can trust Peda-Gard TS in your next project
High-performance protection tested under the harshest environments. Peda-Gard TS was developed to endure intense pedestrian traffic while providing a seamless, durable protection against cracks and abrasion.
