Elastacryl SP is a seamless, fully adhered, fluid-applied coating system for use over single-ply membranes such as TPO, PVC, EPDM, and others.
Elastacryl SP
Acrylic system for use over single-ply roofing substrates
System Overview
Elastacryl SP uses Neogard 7251 and 7261 acrylic coatings; they are single component, water based, and elastomeric. Both 7251 and 7261 meet LEED performance requirements for low-slope roofing, and are approved by the Cool Roof Ratings Council (CRRC). They also meet VOC requirements for the South Coast AQMD. Special primers for TPO and other singly-ply materials are available to maximize the system’s adhesion.
Not intended for use over ballasted single-ply roof membranes; contact Innovacoatings for recommendations.
Use Area:
Roofing
Type:
Acrylic
Features:
- Low odor
- Lightweight
- Energy efficient
- Elastomeric
- Energy efficient
Benefits:
- Environmentally friendly
- Installed over existing roof with minimal tear-off
- Reflects light and emits heat
- Accomodates thermal expansion and contraction
- Reflects light and emits heat
Selected Physical Properties
| Product | Description | Test Method | Results |
|---|---|---|---|
| 7251 and 7261 | Tensile Strength | ASTM D2370 | 280 psi |
| 7251 and 7261 | Elongation | ASTM D2370 | 270% |
| 7251 and 7261 | Water Resistance | ASTM D471 | < 20% |
| 7251 and 7261 | Solar Reflectance | ASTM C1549 | 0.83 |
| 7251 and 7261 | Thermal Emittance | ASTM C1371 | 0.87 |
Elastacryl SP System Build

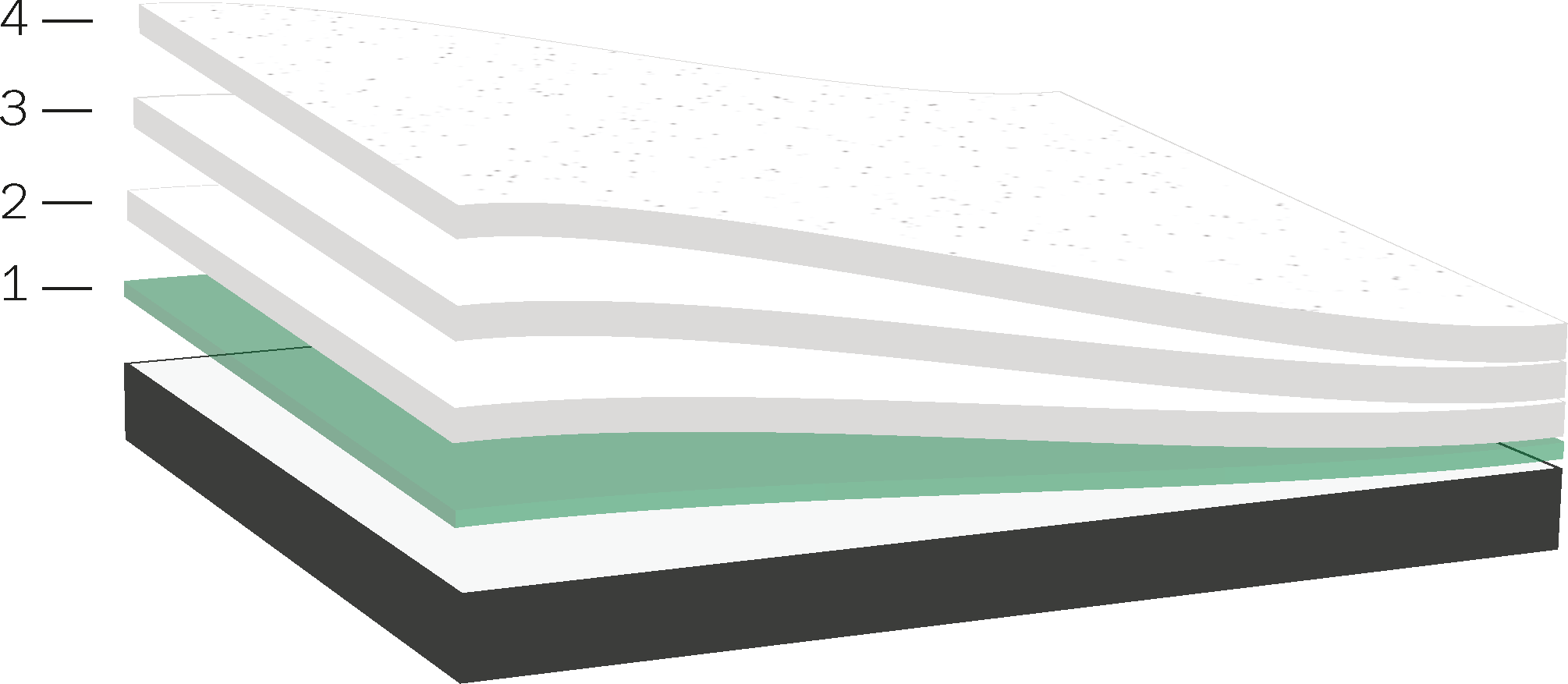

| Coat | Product | Coverage Rate | Mils WFT/DFT |
|---|---|---|---|
| 4 - Optional Granule Coat |
7251 or 7261 + #11 roofing granules |
80 sf/gal 30 lbs/100 sf |
20/10 |
| 3 - Second | 7251 or 7261 | 66 sf/gal | 24/13 |
| 2 - First | 7251 or 7261 | 66 sf/gal | 24/13 |
| 1 - Primer | TPO: 7720 Others: 7797/7798 |
250-300 sf/gal 400 sf/gal |
NA |

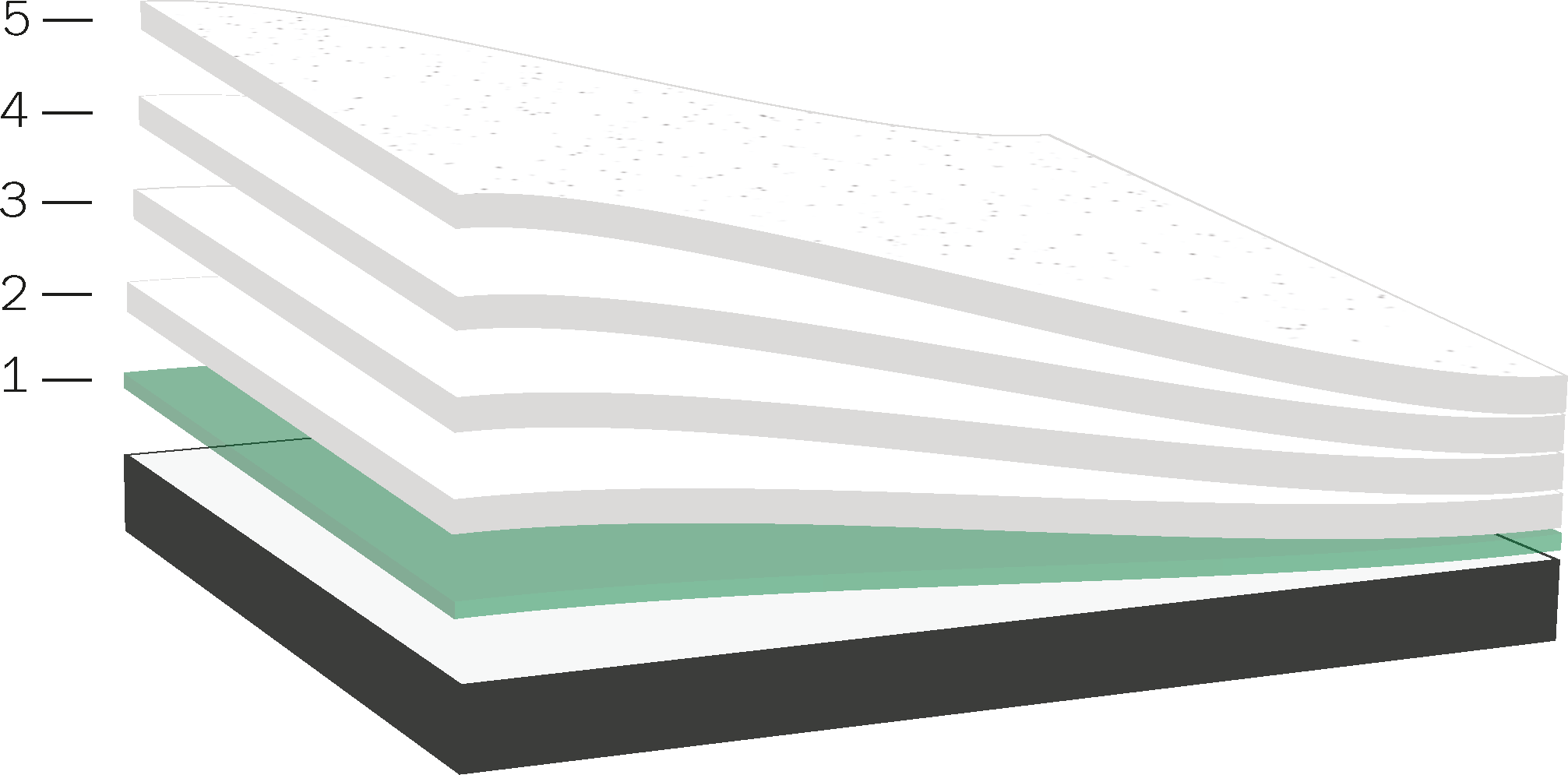

| Coat | Product | Coverage Rate | Mils WFT/DFT |
|---|---|---|---|
| 5 - Optional Granule Coat |
7251 or 7261 + #11 roofing granules |
80 sf/gal 30 lbs/100 sf |
20/10 |
| 4 - Third | 7251 or 7261 | 66 sf/gal | 24/13 |
| 3 - Second | 7251 or 7261 | 66 sf/gal | 24/13 |
| 2 - First | 7251 or 7261 | 66 sf/gal | 24/13 |
| 1 - Primer | TPO: 7720 Others: 7797/7798 |
250-300 sf/gal 400 sf/gal |
NA |
Technical Documents
Can Innovacoatings acrylic roof coatings withstand ponding water?
No. Innovacoatings roofing acrylics are water-based, so they cannot withstand ponding water.
Are seam details required for the Elastacryl SP system?
Yes. All seams should be detailed with 70690 urethane mastic prior to coating.
Is a moisture analysis required prior to the installation of Elastacryl SP?
A moisture analysis is not required, but is highly recommended prior to the start of work.
What warranties are available for Elastacryl SP?
We offer Material Only and Labor/Material Warranties for 10 and 15 year terms.
Do you have to be an approved applicator to install Neogard warranted systems?
You do not have to be an approved applicator to purchase material and receive a Material Warranty. You must be a Certified Applicator to receive a Labor/Material Warranty.
