Elasta-Gard Emulsion

Aliphatic urethane topcoat system with asphaltic emulsion coat for use over built-up roofs and modified bitumen.

System Overview

Elasta-Gard Elasta-Gard Emulsion is a urethane coating system with an asphaltic emulsion coat for use over BUR/MB or granulated cap sheet. The system incorporates an asphaltic emulsion reinforced with fabric or chopped strand fiberglass, a 70620-CA aromatic urethane base coat, and a 7490-CA aliphatic urethane top coat. Contact Innovacoatings for approved asphaltic emulsion manufacturers; refer to the system Guide Specification for required physical properties.

Innovacoatings -CA urethane roof coatings form a seamless membrane for superior durability, flexibility, color retention and long-term protection. They comply with South Coast AQMD VOC regulations. They are typically rolled, but can also be sprayed (contact Innovacoatings for information on spray equipment). Our 7490-CA aliphatic topcoat has high UV resistance, and is less likely to chalk than an aromatic coating. It and our 70620-CA base coat also have high tensile strength and chemical resistance, which prevents failure due to expansion and contraction of the system, and failures around critical areas like penetrations and flashing.

Use Area:

Roofing

Type:

Aliphatic Urethane

Features:

  • Single component urethane
  • Aliphatic urethane topcoat
  • High elongation and tensile strength
  • Energy efficient
  • Sustainable

Benefits:

  • Easier installation
  • Great UV Stability
  • Greater impact resistance to hail and foot traffic
  • Lower energy expenses
  • Reduces life cycle costs

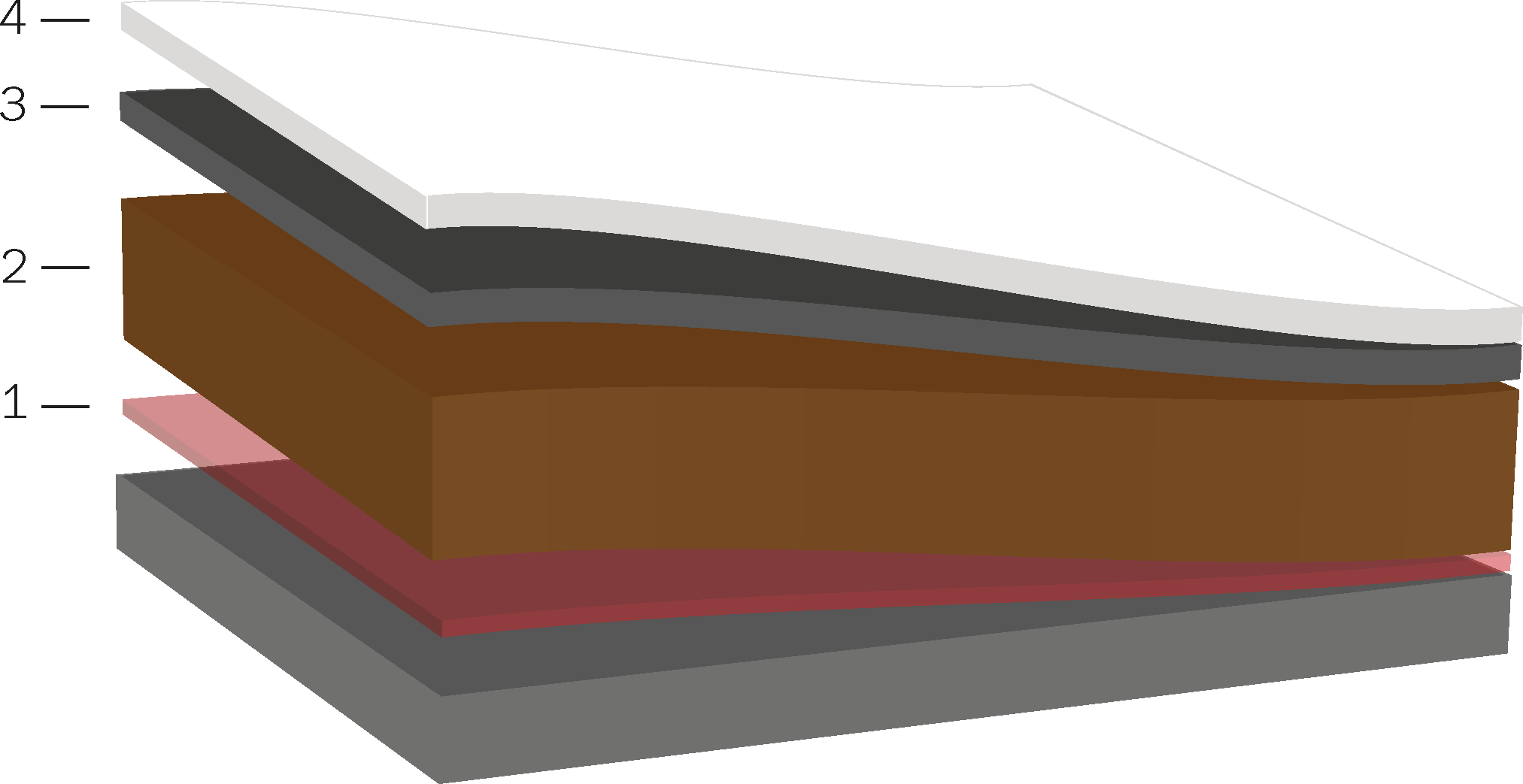

Elasta-Gard Emulsion System Build

Coat Product Coverage Rate Mils WFT/DFT
4 - Topcoat 7490-CA 66 sf/gal 24/18
3 - Base 70620-CA 66 sf/gal 24/18
2 - Emulsion Asphaltic Emulsion +
Tietex or Fiberglass*
9 gal/100 sf

NA
1 - Primer 7780/7781 300 sf/gal NA

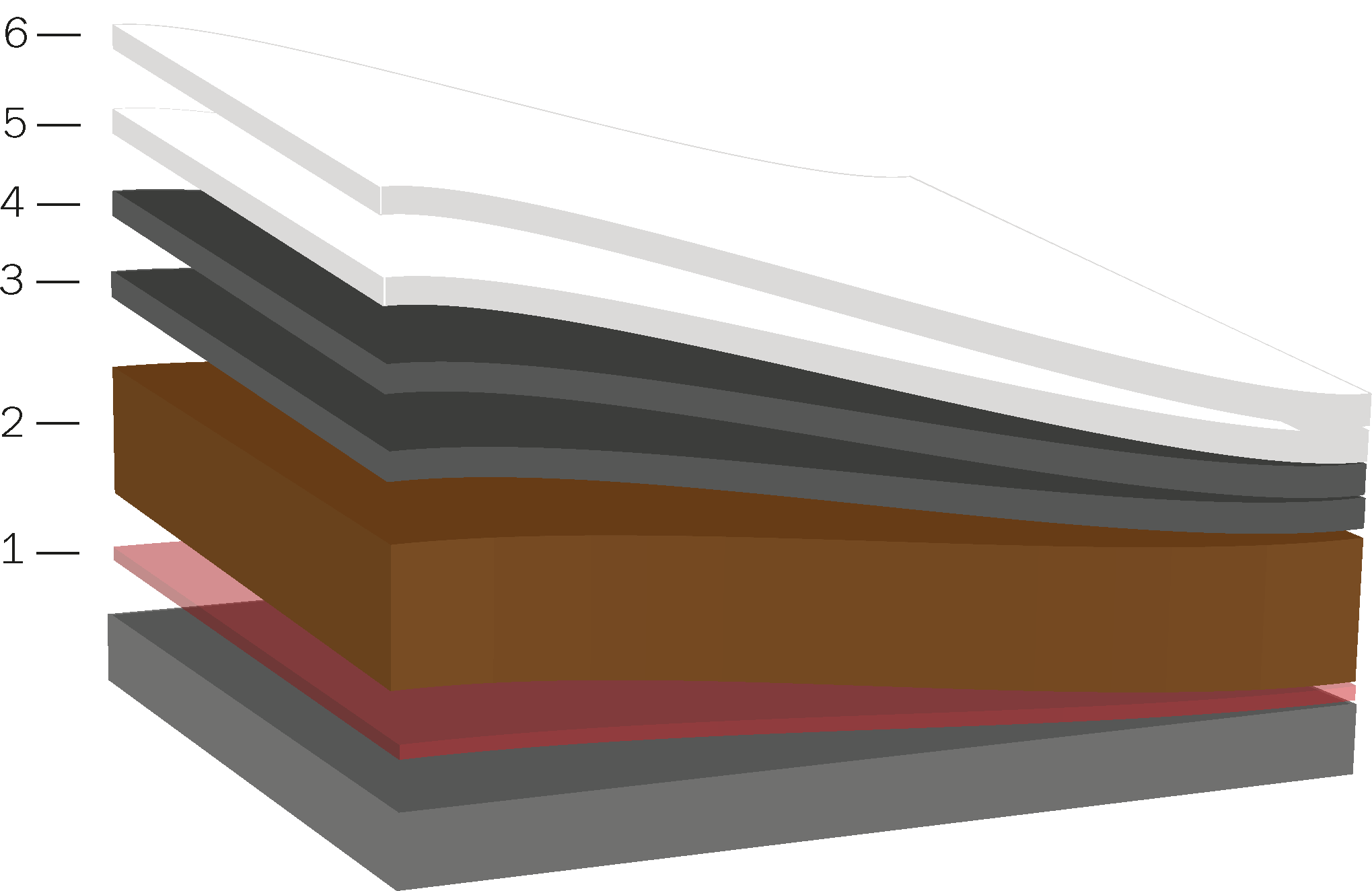

Coat Product Coverage Rate Mils WFT/DFT
6 - 2nd Topcoat 7490-CA 66 sf/gal 24/18
5 - 1st Topcoat 7490-CA 66 sf/gal 24/18
4 - 2nd Base 70620-CA 66 sf/gal 24/18
3 - 1st Base 70620-CA 66 sf/gal 24/18
2 - Emulsion Asphaltic Emulsion +
Tietex or Fiberglass*
9 gal/100 sf

NA
1 - Primer 7780/7781 300 sf/gal NA
