Auto-Gard Aliphatic T is a urethane system with an integrally textured top coat. It provides a consistent, well-textured finish with good anti-slip characteristics. The integrally textured top coat eliminates the need for silica aggregates, reducing health risks from silicosis. This system is ideal for high production applications.
Auto-Gard Aliphatic T
Single component, solvent-based urethane system with an integrally textured aliphatic topcoat
System Overview
Innovacoatings T-Systems eliminate the aggregate broadcast step required for standard vehicular and pedestrian traffic coatings.
T-Systems are integrally textured—they have a synthetic aggregate suspended in the coating. Applicators can install these coatings without broadcasting silica quartz aggregate, eliminating a production step and allowing a higher rate of production over standard coatings.
Eliminating the broadcast step also removes the use of hazardous silica sand on job sites, while achieving a more consistent textured surface and improving slip resistance compared to a system with manual aggregate broadcast.
Saving time is key for applications like renovations and routine maintenance, which are typically completed during a facility’s down time.
Use Area:
Vehicular Traffic
Features:
- Single comp
- Integrally textured
- No broadcasting of aggregate
- No presence of silica
Benefits:
- Reduced mixing time
- No exposure to silicas
- Higher production vs. broadcast systems
- Reduced health hazard
Selected Physical Properties
| Product | Description | Test Method | Results |
|---|---|---|---|
| 7475 topcoat | Taber Abrasion | ASTM D4060 | 10 mg/1,000 CS-17 |
| 7475 topcoat | MVT at 20 mils | ASTM E96 | 2.5 English perms |
| 7475 topcoat | Shore A | ASTM D2240 | 88-92 |

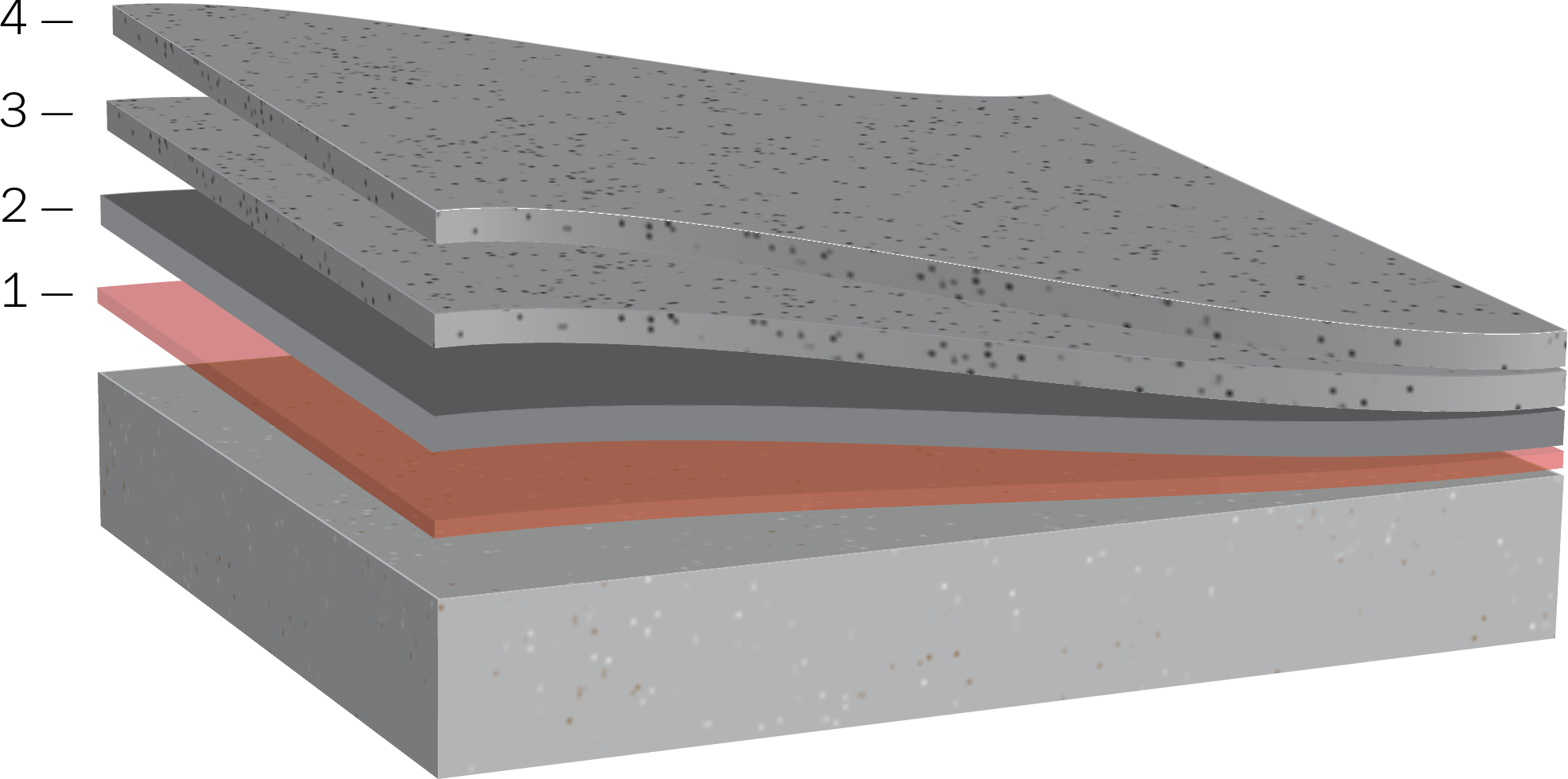

Auto-Gard Aliphatic T System Build
| Coat | Product | Coverage Rate | Mils WFT/DFT |
|---|---|---|---|
| 4 - Topcoat | 7475 series | 62 sf/gal | 26/20 |
| 3 - Double Texture | 7475 series | 90-100 sf/gal | 16/12 |
| 2 - Base | 70410 or 7430 series |
60 sf/gal | 26/20 |
| 1 - Primer | 7760/7761 7780/7781 7797/7798 |
300 sf/gal 300 sf/gal 300-500 sf/gal |
NA |
Technical Documents
How long does Auto-Gard Aliphatic T need to cure before opening to vehicular traffic?
Typically the coating needs to cure 72 hours before opening to vehicular traffic. In cooler temperatures this time may extend out as much as 24-36 hours.
What type concrete curing compounds can be used with Auto-Gard Aliphatic T?
It is best to water cure concrete or use a sodium silicate curing compound. The use of acrylic or other “film forming” compounds will create bond issues and must be removed.
What is the minimum temperature at which Auto-Gard Aliphatic T can be applied?
The coating should be applied at temperatures that are 40°F/4°C and rising during application.
What is the maximum concrete temperature that Auto-Gard Aliphatic T can be applied?
The coating should not be applied to deck surfaces that are =/> 100°F/38°C.
You can trust Auto-Gard Aliphatic T in your next project
High-performance protection tested under the harshest environments. Auto-Gard Aliphatic T was developed to endure intense vehicular traffic while providing a seamless, durable, skid-resistance membrane to prevent the ingress of moisture and chloride intrusion.
